Coal Emergency Mining Cap Lights For Coal Miner With PC Material
Product Details:
The GLC6-C Cordless Cap Lamp features a compact, low-fuss click-and-go design,
and offers over 14 hours of constant use.
Unique to the cordless model is a back-lit display screen with battery life indication,
providing clear warning when recharge is required.
OLED: Display the battery status, time, date and client's company information
1. Bring you "USE AGAIN"
2. Magnetic USB charger or cradles
3. Brightness 13000lux
4. Three Level: 1 higher, 2 normal, 3 SOS light
Operating Green Lighting Cordless Cap Lamp - Turning ON/OFF and Cycling Modes:
1. Push “L” button once to turn lamp ON (Mode 1).
2. Push “L” button twice to turn lamp to LOW (Mode 2).
3. Push “L” button three times to turn lamp OFF (Mode 3).
4. Push “L” button on for 3 seconds to turn to flashing light mode.
Technical Specs:
| Name | GLC6-C |
| Item | Unit | Data |
| Rated capacity | Ah | 6.2 |
| Nominal voltage | V | 3.7 |
| Lighting time | h | 15 |
| Rated voltage | V | 4.2 |
| Power of main light | W | 2.22 |
| Illminous of main light | Lum | 222 |
| Beging lighting | Lx | 13000 |
| Charging time | Hrs | 4 |
| Weight | g | 205 |
| Battery cycle | times | 1200 |
| Water-proof grade | | IP68 |
Feature:
* Compact design
* Long life li-ion battery
* Easy push-button operation
* Anti-static durable housing
* Water resistant (IP68)
* Electrical short circuit protection
Charger input power:
USB Charger: 5 VDC @ 2 Amp
Single Charger (optional): 12VDC – 24VDC @ 2 Amp
Charger Rack Available
Spare Parts Clarify:
| Item | Part Number | Decription |
| 1 | GL-SP-001 | FRONT CASE, OLED SCREEN, FPC |
| 2 | GL-SP-002 | LED,REFLECTOR,PCB |
| 3 | GL-SP-003 | 6.2Ah BATTERY PACK |
| 4 | GL-SP-004 | BUTTON SWITCH |
| 5 | GL-SP-005 | SEAL RING |
| 6 | GL-SP-006 | BACK CASE |
| 7 | GL-SP-007 | CLIP, SCREW |
Packaging:
One set each gift box with 1pc head lamp, 1pc USB charger / Single Charger and Manual

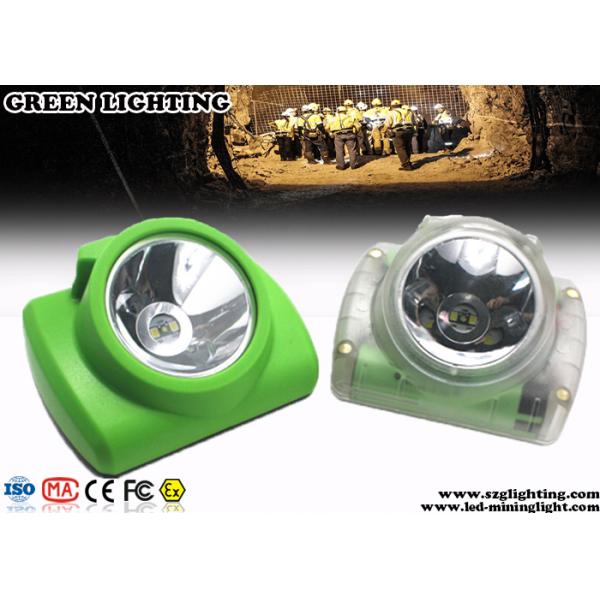

Product Pictures:
Application of Green Lighting Miner Lamp:
Suitable for explosive gas environment zone 1, zone 2 locations;
Suitable for combustible dust environment 20 zone, 21 zone and 22 zone places;
Suitable for A, II B, II C explosive gas environment;
Suitable for: indoor, outdoor 1.8-3.5 meters in height;
Widely used in petrochemical, chemical, nuclear power, military automobile shipbuilding industries, suitable for oil pipelines, cable interlayer, platform channel, pump house , Tunnel Project , Mountian-climbing,hiking, Patrolling, Overhauling and Emergency in electrical power company,Mine , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect..
