IP 68 13000Lux Underground Cordless Cap Lamp , LED Mining Light
Product Details:
Model: GLC6-C mining head lamp / cap lamp / miner cap lamp
Light source: one main and two auxiliary lights
Luminous: 360Lum
Working time: more than 13hrs
Charging time: less than 4hrs
Battery capacity: 2.6AH / 3.1AH / 5.2AH / 6.2AH available
Lighting mode: main light - auxiliary light - SOS
Usage: underground lighting, mine lighting, hiking, camping, fishing, home lighting, other outdoor and indoor lighting.
Charger: USB charger and car charger
Feature:
wateproof grade: IP68
Anti-explosive grade: Ex ia
Material: flame retardant material.
Charging type: USB charger and cradle charger
Brightness: 6000lux - 12000lux, three times than traditional cordless cap lamp
Weight: 140g - 190g , similar to the weight of cell phone, more portable.
Function: main light - auxiliary light - SOS three lighting modes, LCD screen displays compnay logo, time, battery capacity or other custermized inforamtion.
OLED: Display the battery status, time, date and client's company information
1. Bring you "USE AGAIN"
2. Magnetic USB charger or cradles
3. Brightness 13000lux
4. Three Level: 1 higher, 2 normal, 3 SOS light
Operating Green Lighting Cordless Cap Lamp - Turning ON/OFF and Cycling Modes:
1. Push “L” button once to turn lamp ON (Mode 1).
2. Push “L” button twice to turn lamp to LOW (Mode 2).
3. Push “L” button three times to turn lamp OFF (Mode 3).
4. Push “L” button on for 3 seconds to turn to flashing light mode.
Technical Specs:
| Name | GLC6-C |
| Item | Unit | Data |
| Rated capacity | Ah | 6.2 |
| Nominal voltage | V | 3.7 |
| Lighting time | h | 15 |
| Rated voltage | V | 4.2 |
| Power of main light | W | 2.22 |
| Illminous of main light | Lum | 222 |
| Beging lighting | Lx | 13000 |
| Charging time | Hrs | 4 |
| Weight | g | 205 |
| Battery cycle | times | 1200 |
| Water-proof grade | | IP68 |
Charger input power:
USB Charger: 5 VDC @ 2 Amp
Single Charger (optional): 12VDC – 24VDC @ 2 Amp
Charger Rack Available.
Spare Parts Clarify:
| Item | Part Number | Decription |
| 1 | GL-SP-001 | FRONT CASE, OLED SCREEN, FPC |
| 2 | GL-SP-002 | LED,REFLECTOR,PCB |
| 3 | GL-SP-003 | 6.2Ah BATTERY PACK |
| 4 | GL-SP-004 | BUTTON SWITCH |
| 5 | GL-SP-005 | SEAL RING |
| 6 | GL-SP-006 | BACK CASE |
| 7 | GL-SP-007 | CLIP, SCREW |
Packaging:
One set each gift box with 1pc head lamp, 1pc USB charger / Single Charger and Manual
Product Pictures:

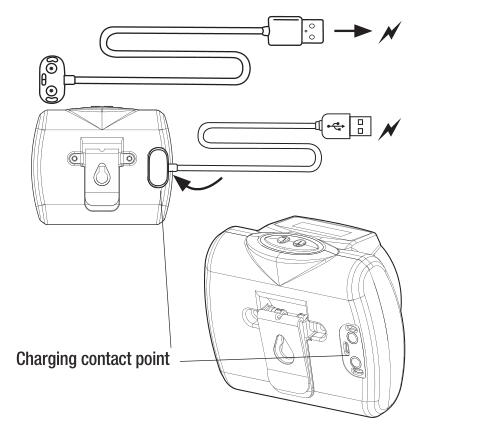

Charging the cordless cap lamp GLC6-C:
1. Clean device before charging.
2. Attch USB end of charger to a USB charging jack.
3. Attch the other end of the cable to the magnetic charging contact point on the cap lamp.
4. Charging will take approximately 6 hours, except when the battery is completely discharged in which it will take approximately 12 hours.
5. LED indicator on the cap lamp will display full charge as per table above. Your cap lamp is ready for us.
