Mining hard hat headlamp Outdoor Hunting / Super Bright Rechargeable LED Miner Cap Lamp Lithium Battery
1. Cap Lamp Features:
Lost cost ,high safety.
1). LED : less energy and super brightness LED
2). Battery : safety lithium ion battery
3). Small in size, light in weight, free maintenance, explosion prevention, waterproof, long life
4). Lighting time : more than 20 working hours, double light source design
5). Charger AC input : AC110 ~ 240V, 50/60Hz DC output : DC4.2V,1A
6). Working temperature : -10 ~ 45 degrees
7). Relative air humidity : <= 95% +- 3RH
2. Undergoud Heaplamp Technical specification:
1).Charger(Lithium ion):
It adpot isopiestic pressure current limiting charging way.Its setting value volatge is 4.2V(normal charging voltage is 4.2V).When charging max current is 1A and voltage approachs to 4.2V,charging current will reduce gently.When batterys voltage is 4.2V and current is less than 100A,the indicator light will display green color.this mean that miners lamp can be used normally.When its charging ,the indicator light will display red color.
2).LED:it adpot 1W high-power Led,The life is more than 50000 hours.illumiance is more than 3000 lux/60lm,it adpot two sets of light source,one is main - six auxiliary light source or main-axiliary in one .when main light source lose function,pls turn a switch axis into auxiliary light source then it go into work normally(This is for meet an emergency)
3).Battery (Lithium ion)
It adpot new styled lithium ion battery which is with over-charging , over-discharging and a short circuit protection fuction.Every battery cycled lifetime is more than 500 times.It has 75% rated capacity after using 500 times.Its a newest environmental protection battery.
3. Miner Cap Lamp Technical Specifications:
miner cap lamp is designed based on our GL5-C corded mining lights
| Item | Value | Unit |
| Light source | 1pcs main light and 6pcs auxiliary lights | |
| Battery capacity | 6.6 | Ah |
| Rated Voltage | 3.7 | V |
| Main light current | 450 | mA |
| Power of the main light | 1.6 | W |
| Illuminous | 216 | Lumens |
| Brightness of the main light | 10000 | Lux |
| Life span for main LED | 100000 | Hours |
| Battery cycles | 1000 | Cycles |
| Weight | 478 | G |
| Water-proof grade | IP68 |
| Certified | CE, ATEX, EXIB II |
| Sample | yes, free sample is available |
Miner Cap Lamp Packing:
packing by colorful box of unit lamp, 60pcs/carton. Also accept customers designed package.

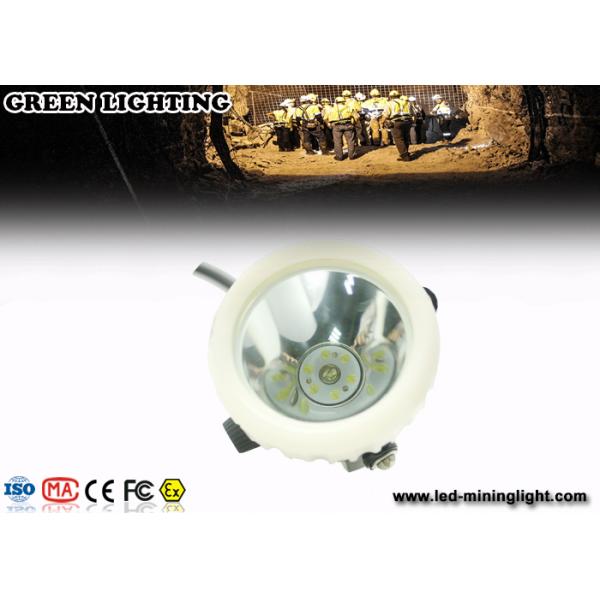

4. Miner Cap Lamp Product Pictures:
5.Miner Cap Lamp Product Advantages :
Safety : Over-charging protection , over-discharging protection, protection in electrical short-circuit,
automatic power-off on the socket , 100,000 hours LED’s Lifetime
Portability :Small in size , light in weight (only 478g for whole product),inductive charging, easy usage
Efficiency: more than 16hours at full brightness, over 80hours at back up led brightness.Over 10000lux
Brightness
Environmental : Li-ion battery is free for maintenance, and the material of li-ion is environmental, use
1Watt high power LED as the main light, and 6pcs backup LED’s to save power
Economy : three times longer than lead and acid cap lamp and saving in maintenance makes the product
more compatible in price
Charger input power : AC100-240V / 50-60Hz. Charging time: 6hours, continuous discharging time: more than 16hours at full brightness, over 80hours at back up led brightness.
Type of protection : IMI EXia IICT6 (Zone 1 and 2)
Protection category : IP68
6. Miner Cap Lamp Special Requested &Our Advantages
1). May you provide LOGO us to manufacture.
2). High quality and competitive price .
3). Can according to your requested to design new item that suitable for your market.
4). Above is only for your reference, we can custom make as per your requested.
5). We sincerely welcome foreign friends who have the need of export.
a. Ten years development experience.
b. Advanced testing euipments.
b. Professional development and sales group.
c. The market covers more than fifteen counrtries.
d. Products are certified to keep the high quality.
7.Our Market:
our products have already captured the vast consumer markets in many countries such as South America, North America, Europe, Australia, South Africa, Middle East, etc. We have already have more than sixty distributors in forty four cities over the world. If you want to be our distributor, pls contact with us.
