IP68 Water Proof GL8-C miners helmet light with 10000lux high beam qnd low power warning fuction for safety lighting
Main Features for Model GL8-C mining headlamp with cable:
1. Brightness: 10000lux high beam corded lamp.
2. One main light and two auxiliary lights.
3. 7.8Ah big battery capacity and 18hours lighting working time.
4. Low power warning function for safery lighting.
5. Silicon button cap with good touch and long life usage.
6. Special material with flame resistant, impact resistant. ATEX explosion-proof, Dust-proof.
7. Enviromental: Lithium battery with short circuit protection, over charging protection and over discharging, free mataince long battery life span.
8. OEM and ODM available. Write the request to cap lamps, such as clients company name, LOGO, series No and user name.
9. Optical Design: According to LED Luminous Flux, Light cup curve and current to design the Light Beam.
10. Quality is our culture. We will be responsible for you if any quality problem and warranty time is one year.
Main parameter of two series of rechargeable headlamp:
| Items | Value | Value |
| Model | GL8-C | GL5-C |
| Light Source | 1 main light and 2 auxiliary lights | 1 main light and 2 auxiliary lights |
| Battery Capacity | 7.8Ah Li-ion battery pack | 6.6Ah Li-ion battery pack |
| Rated Voltage | 3.7V | 3.7V |
| Main light current | 450mA | 450mA |
| Power of main light | 1.67W | 1.67W |
| Illuminous | 216lum | 216lum |
| Brightness | 10000lux | 10000lux |
| Life span of main light | 100000hours | 100000lux |
| Battery cycles | 1000cycles | 1000cycles |
| Working time | 18hours | 16hours |
| Weight | 420g | 420g |
| Waterproof grade | IP68 | IP68 |
Trouble and troubleshootings:
| Trouble description | Trouble analysis | Troubleshooting |
| Ligth is not on when pressing the botton | Battery power is used up or automatic opening protection | Charge the light |
| Working time is less than 12hours | Battery is not fully charged | Make sure the lamp well connected to the charger when charging |
| Longer charging time | The charging points poor contact | Clean the charging points and slot |
| Low illuminance | Dirty lens | Clean water wash lens |
Detailed Pictures
Charging and Aging Testing:

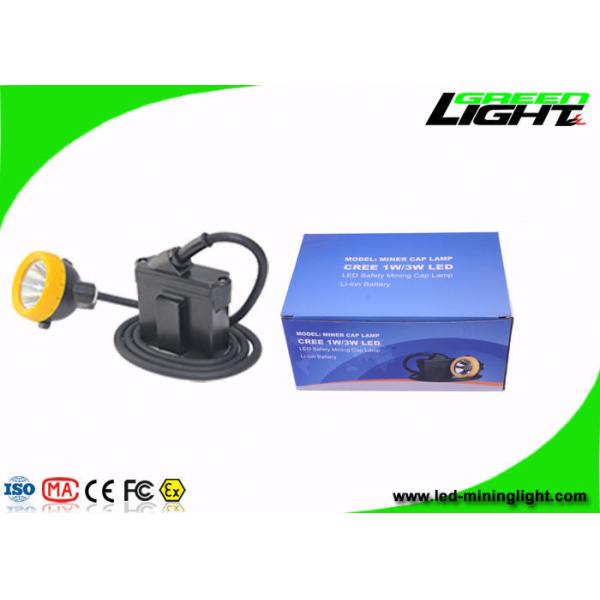

Package :
Company Show:
Transportation:
Lead time: It usually takes 3 to 7 working days for samples order; 10 to 25 working days to bulk order.
We can deliver miner lamp by express (Fedex, DHL, TNT) and by sea and by air according to your choice.
If you have any question, please feel free to contact us. We will reply you as soon as possible.
